Flat Chuck

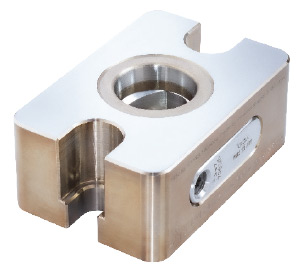

The ESA125/85 FLAT CHUCK is a new body form for the SYSTEM 40 knob for smaller parts and machines with smaller work envelopes. The clamping is manual, eliminating the need for air.

The use of a torque-limiting wrench is recommended in cases where a lighter retention force is required and to limit overtightening. The chuck can be used on its own or in combination with other chucks.

Features & Benefits
  • Compact body form
  • Precision timing slots on the top face
  • Precision location bores on the bottom face
  • Mounting via M12 or M16 screws
