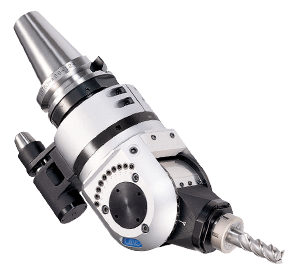

AGU90 Type Angle Heads

Adjustable Angle Heads from 1° - 90°

AGU90 Type Angle Heads, with an adjustable spindle, (1° - 90°, 1° increment), combine vertical and horizontal operations on one machine. They increase productivity by easily changing the angle of the cutter while utilizing the original workpiece setup. This improves overall accuracy and eliminates the potential for error created by multiple setups.

SK and BT Versions

BIG-PLUS is standard for all SK & BT versions, ensuring rigidity and accurate automatic tool changes.

Features & Benefits
  • Combines horizontal, vertical, and angular operations in 1 setup
  • Easy and precise setting of spindle angle
  • The advanced non-contact seal prevents coolant and particle contamination
  • Excellent runout control
  • BIG-PLUS is standard for added rigidity
  • Automatic Tool Change
  • The spindle is adjustable for all cutting angles 0° - 90° in 1° increment
  • Cutter head adjustable full 360°
  • Unique coolant jacket
  • Superior quality components
  • Utilizes New Baby Collet
  • 6,000 RPM for 40 taper
  • 4,000 RPM for 50 taper
