Base Master Series

Tool Offset Sensor

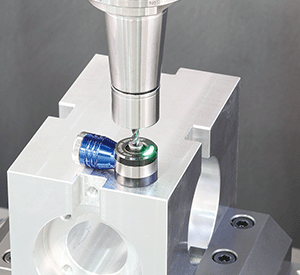

Base Master Series is a precision touch sensor to determine workpiece offsets and tool length. They can be mounted on the workpiece surface or machine table. An LED lamp illuminates immediately when the cutting edge touches the sensor plate and the position is detected.

Features & Benefits
  • LED lamp illuminates when sensor plate is touched and specified distance is reached
  • Repeatability of +/-1 µm
  • Greatly reduced setup time
  • Compact design for fast and easy handling
  • Safety over-travel of sensor plate prevents damage to tools
  • Magnetic base mounts vertically, horizontally, or at any angle
