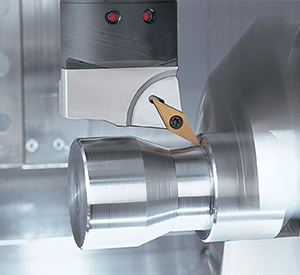

90° Tilt Style Mill-Turn Tools

Type F Basic Holder

Type F 90° Tilt Style Mill-Turn Tools use two clamping bolts that press the cartridge onto the basic holder. The torque is transmitted by an interlocking drive slot.

These are the very first modular tooling system for turning applications on MTC's (Mill-Turn Centers). A modular tooling system offers better efficiency, material selection, heat treatment and optimal tool lengths. Serious damage to tool holders caused by broken inserts can now be easily and economically replaced.

Features & Benefits
  • 90° approach to reduce workpiece interference
  • Simple and positive cartridge clamping system
  • Safe and easy clamping of inserts
  • 26 cartridges to choose from
